LED display modules

LED modules across the pitches and formats that actually ship — not a single house line.

COB flip-chip modules we stock and price directly, plus outdoor and indoor SMD module lines sourced from our JoinOpto partner factory as reference. Pricing on the spec-reference lines below is quoted per order — pitch, brightness tier and IP rating all move the number, so send us the application and we'll come back with a real figure.

COB pricing Browse module lines

Pixel pitchP0.9 – P10

Ships fromShenzhen, CN

FormatsOutdoor / Indoor / Soft

COB flip-chip LED module, front display face and rear cabinet with cable and handle

MODULE CAPABILITYREV. 2026.09

Two ways we supply modules

COB flip-chip modules are our own stocked line — fixed pricing, ready to order below. Outdoor/indoor SMD modules are sourced to spec from partner factories — the tables below are reference parameters from the current catalog, not a live price list.

Nationstar LEDs Kinglight LEDs JoinOpto

COB Series — flip-chip modules

01 / COB SERIES — IN STOCK, FIXED PRICE

COB (Chip-on-Board) full flip-chip modules on a 600×337.5mm die-cast aluminum cabinet — no visible surface-mount LEDs, higher contrast, and no pixel repair from the front. Stocked in three pitches below.

Cabinet size600×337.5mm

MaterialDie-cast aluminum

MountFlip-chip COB

COB SERIESREV. 2026.09

P0.9375 / P1.25 / P1.5625

Front (display face) and rear (die-cast cabinet, PSU + receiving card mounts, carry handle) of the same unit — current stock photo, not a render.

LED Modules — COB Flip-Chip, 600×337.5mm Cabinet

P0.9375 COB	$2,096/m² ($424/cabinet)	Order
P1.25 COB	$1,290/m² ($261/cabinet)	Order
P1.5625 COB	$1,193/m² ($242/cabinet)	Order

Outdoor SMD modules

02 / SOURCED LINES — SPEC REFERENCE

Parameters below come directly from our JoinOpto partner-factory catalog, current as of Sept 2026 — not a fixed price list. Tap a pitch to ask for that spec's current price, MOQ and lead time.

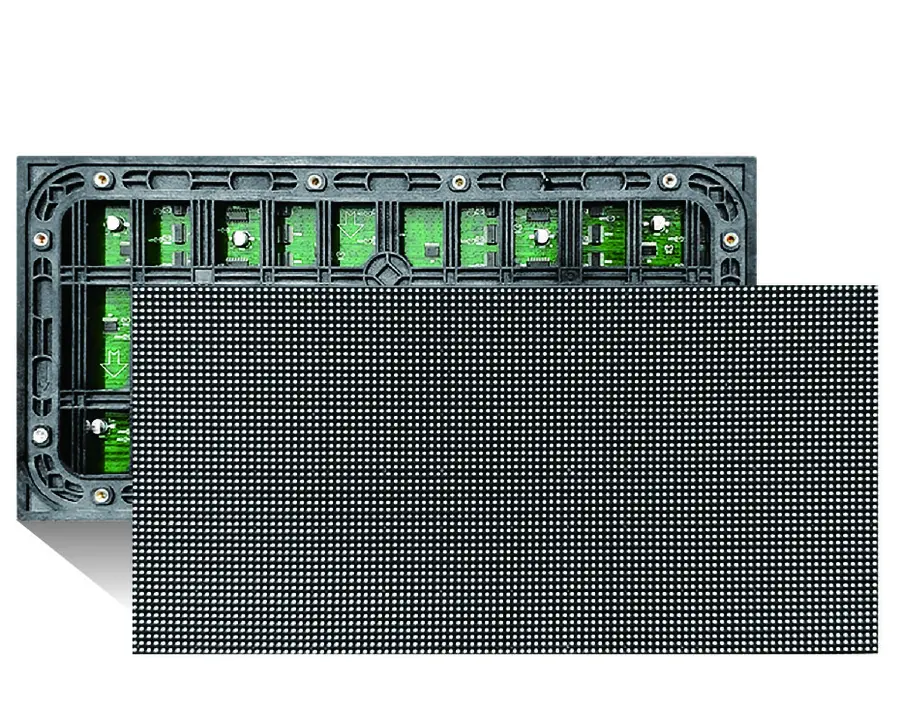

JoinOpto outdoor regular SMD LED module, front and rear

OUTDOOR REGULARSRC: JOINOPTO CATALOG

Outdoor Regular Module Series

Standard SMD outdoor modules for fixed-install and general-purpose screens. LED package steps from SMD1212 at the finest pitch up to SMD3535 at the coarsest; white-balance brightness ≥4,500–5,000cd/m² and rated lifespan ≥100,000 hours across the range.

Module size320×160mm (varies by pitch)

Refresh rate≥1,920Hz

Module power≤25–40W

Available pitches — tap to request a quote

P2 P2.5 P3 P3.076 P4 P5 P6 P6.67 P8 P10

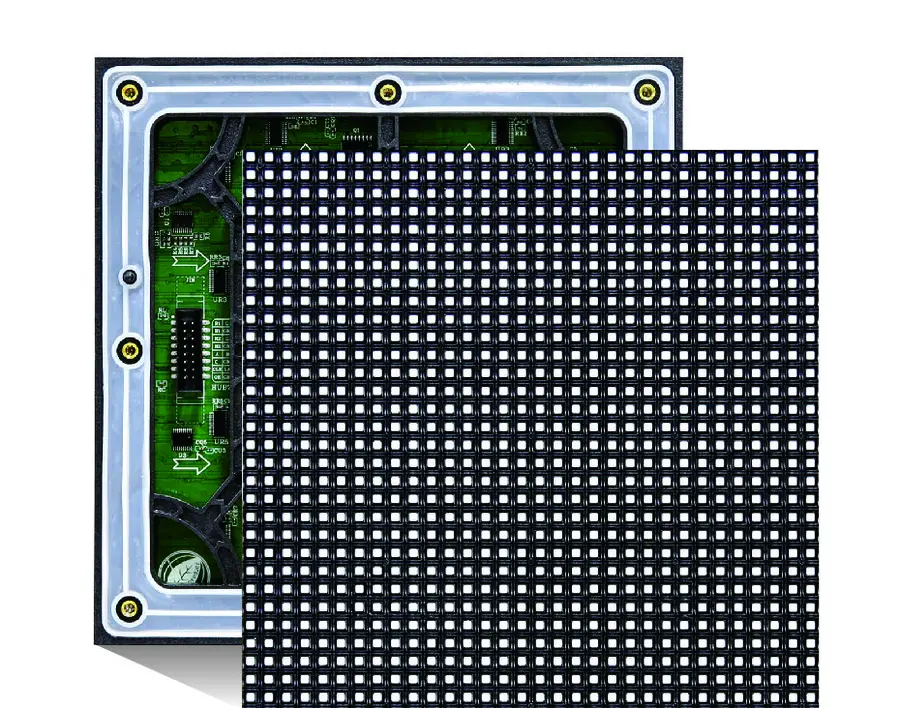

JoinOpto outdoor energy-saving SMD LED module

OUTDOOR ENERGY-SAVINGSRC: JOINOPTO CATALOG

Outdoor Energy-Saving Module Series

Same outdoor-duty pitch range with dual-channel power supply and lower running temperature than the regular series — a fit for large screens where energy cost and heat over long run times matter.

Power supplyDual-channel

Max power≤450W/m²

Key benefitLower operating temp

Available pitches — tap to request a quote

P4 P5 P6 P6.67 P8 P10

Indoor & soft modules

03 / SOURCED LINES — SPEC REFERENCE

Indoor-grade module lines from the same partner catalog — standard and small-pitch SMD lines for fixed indoor screens, and a bendable soft-module line for curved and irregular mounting.

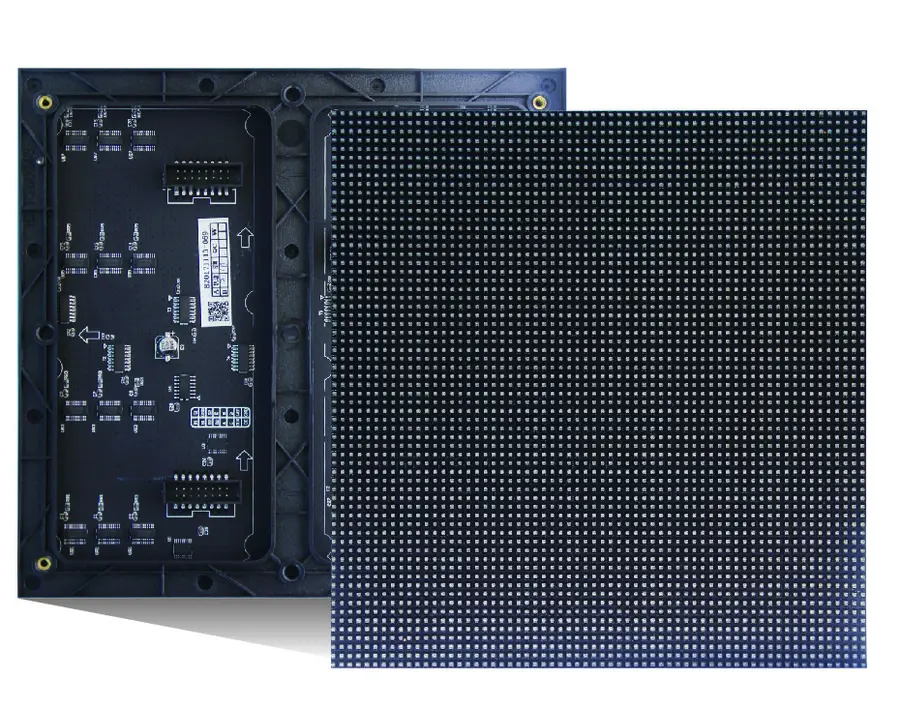

INDOOR REGULARSRC: JOINOPTO CATALOG

Indoor Regular Module Series

Standard SMD indoor modules across P2–P5, in module sizes from 192×192mm up to 320×160mm depending on pitch — the general-purpose line for fixed indoor screens, retail and stage backdrops.

Available pitches — tap to request a quote

P2 P2.5 P3 P4 P5

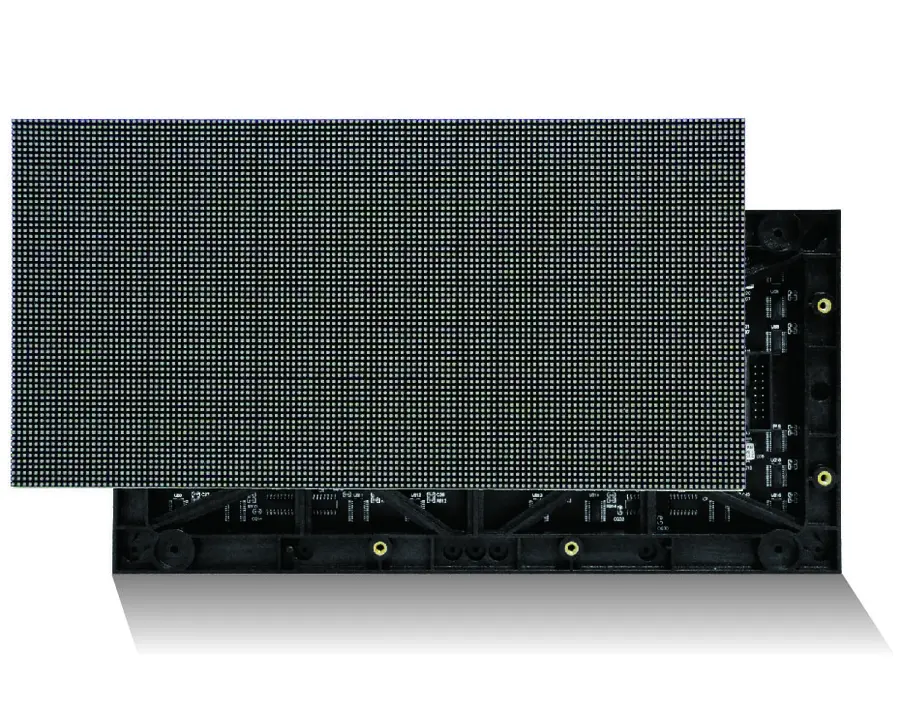

INDOOR SMALL-PITCHSRC: JOINOPTO CATALOG

Indoor Small-Pitch Module Series

P1.25–P2 range, 320×160mm or 240×240mm module formats, module power ≤20–25W, 3,840Hz refresh rate.

Available pitches — tap to request a quote

P1.25 P1.538 P1.667 P1.8605 P1.875 P2

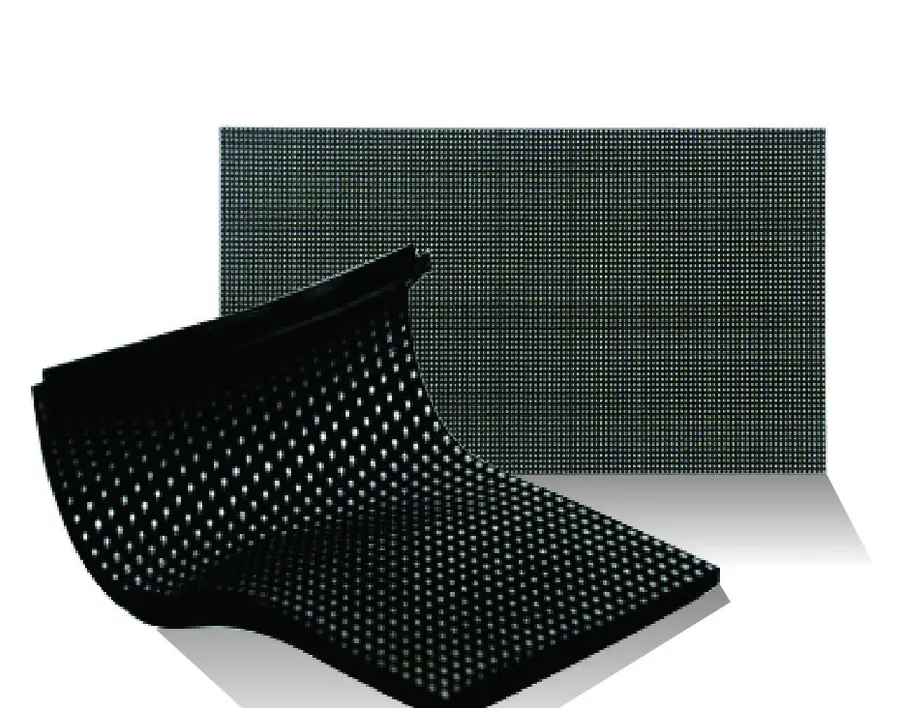

JoinOpto flexible soft LED module, bent to a curve

SOFT / FLEXIBLESRC: JOINOPTO CATALOG

Indoor Full-Color Soft Module Series

Bendable modules for curved, cylindrical or other non-flat mounting — magnetic-mount installation, arbitrary shaping, and thin module profile (0.55–0.85cm). Best viewing distance roughly 4–50m depending on pitch.

MountMagnetic / adhesive

Module thickness0.55–0.85cm

ShapingArbitrary curve

Available pitches — tap to request a quote

P1.875 P2 P2.5 P3 P4 P5

Looking for a complete cabinet, not a bare module — rental screen, fine-pitch or fixed-install cabinet? See Complete LED Displays.

Not sure which module line fits?

Send us the screen's pixel pitch, size and environment (indoor/outdoor) — we'll match it to the right line and get a real quote back to you.
